ANSI B16.9 A234 Wpb 6D Sch80 4" Seamless Pipe Fitting Bend

Product Categories
Hebei Shengtian Pipe Fittings Group Co., Ltd.
Contact Now

ANSI B16.9 A234 Wpb 6D Sch80 4" Seamless Pipe Fitting Bend

Brand Name : ST

Model Number : pipe fitting bend 016

Certification : ANSI

Place of Origin : Mengcun County,Hebei Province

MOQ : 1 Piece

Price : 1-10 Pieces US $4.39/piece; >10 Pieces US $3.54/piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000000PCS/Year

Delivery Time : 7-14 work days

Packaging Details : Plywood Cases, Pallets, Wooden Catron

Radius : 6D

HS Code : 730793

Product Name : ANSI B16.9 A234 Wpb 6D Sch80 4" Seamless Pipe Fitting Bend

Wall Thickness : Sch40

Material : Carbon Steel

Size : 4"

Technics : Pushing

Contact Now

ANSI B16.9 A234 Wpb 6D Sch80 4" Seamless Pipe Fitting Bend　　　

　　

　　In order to prevent the corrosion between the eyes caused by heating, the welding current should not be too large, the arc should not be too long, and the interlayer should be cooled quickly, and the narrow weld bead is suitable;

　　During the welding of medium frequency pipe fitting bend, carbide precipitates after repeated heating, which reduces the corrosion resistance and mechanical properties

　　When the same type of chromium stainless steel electrode is used, it should be preheated above 200 ℃ and tempered about 800 ℃ after welding. If the weldment can not be heat treated, chromium nickel stainless steel electrode should be used;In AC welding of medium frequency pipe fitting bend, the penetration is shallow and red easily, so DC power supply should be used as far as possible

　　The medium frequency pipe fitting bend is easy to crack due to its high hardenability after welding. If the same type of medium frequency pipe fitting bend is used for welding, preheating above 300 ℃ and slow cooling after welding about 700 ℃.



Product Detailes



O.D. Seamless: From 1/2" up to 24" DN15-DN600
Welded: From 26" up to 80" DN650-DN2000
W.T. Sch10, Sch20, Sch30, Sch40, STD, Sch80, XS, Sch120, Sch160, XXS
Bending Radius (R) R=3D 4D 5D 6D 7D 8D 9D 10D.
Bending angle (θ ) 15o 30o 45o 60o 90o 135o180o, and also could manufacture according to
the angles given by the clients.
Straight Length (L) The length between two ends general from 300mm-1500mm,
and also can produce according to the clients' requirement to product.
Material A234-WPB, A420-WPl6, A234-WP11, A234-WP5,
A403-WP304, A403-WP304L, A403-WP316, A403-WP316L, SS304, SS304L, SS316, SS316L
Application Standard ASTM B16.9, ASTM B16.11, ASTM B16.28, JIS B2311/2220, DIN2617/2616/2615/2391
Forming Hot formed, cold drawn
Type Seamless and Welded, LR & SR
End Bevel, plain, thread, socket
Surface Treatment 1) Sandblasting
2) Paint black lacquer or transparent oil on surface to prevent corrosion
Application Petroleum industry, refinery company, fertilizer industry, power station, shipbuilding, onshore platform.
Packing 1) Seaworthy wooden box for fittings with size from 1/2" ~ 14"
2) Seaworthy wooden pallet for fittings with size above 14"
3) According to the packing requirement of clients
Weight Weight (kg)=[0.0433(d-t)trθ ]/100000+l(the weight of two ends straight bend)
MOQ 10 piece
Delivery Term FOB(30% down payment in advance, the balance before shipment)

CIF or C&F(30% in advance , the balance against with the copy of B/L)
Delivery time 15~30 days after receipt of advanced payment



Carbon Steel Pipe Fitting Bend​ Chemical Composition



Grade Mn P S Si Ni Cr Mo Cu Ti V Cb Al
WPHY 42 0.20 1.00-1.45 0.03 0.01 0.15-0.40 0.50 0.30 0.25 0.35 0.05 0.10 0.04

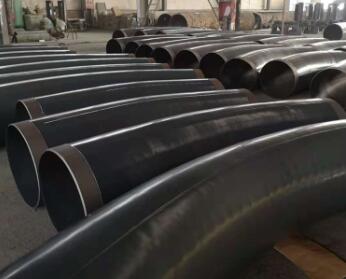

Product Picture



ANSI B16.9 A234 Wpb 6D Sch80 4" Seamless Pipe Fitting Bend



ANSI B16.9 A234 Wpb 6D Sch80 4" Seamless Pipe Fitting Bend
